Tier0 enables you to build a scene using 3D models that have been mapped with real-time UNS data for live display.

Additional Parameter Description

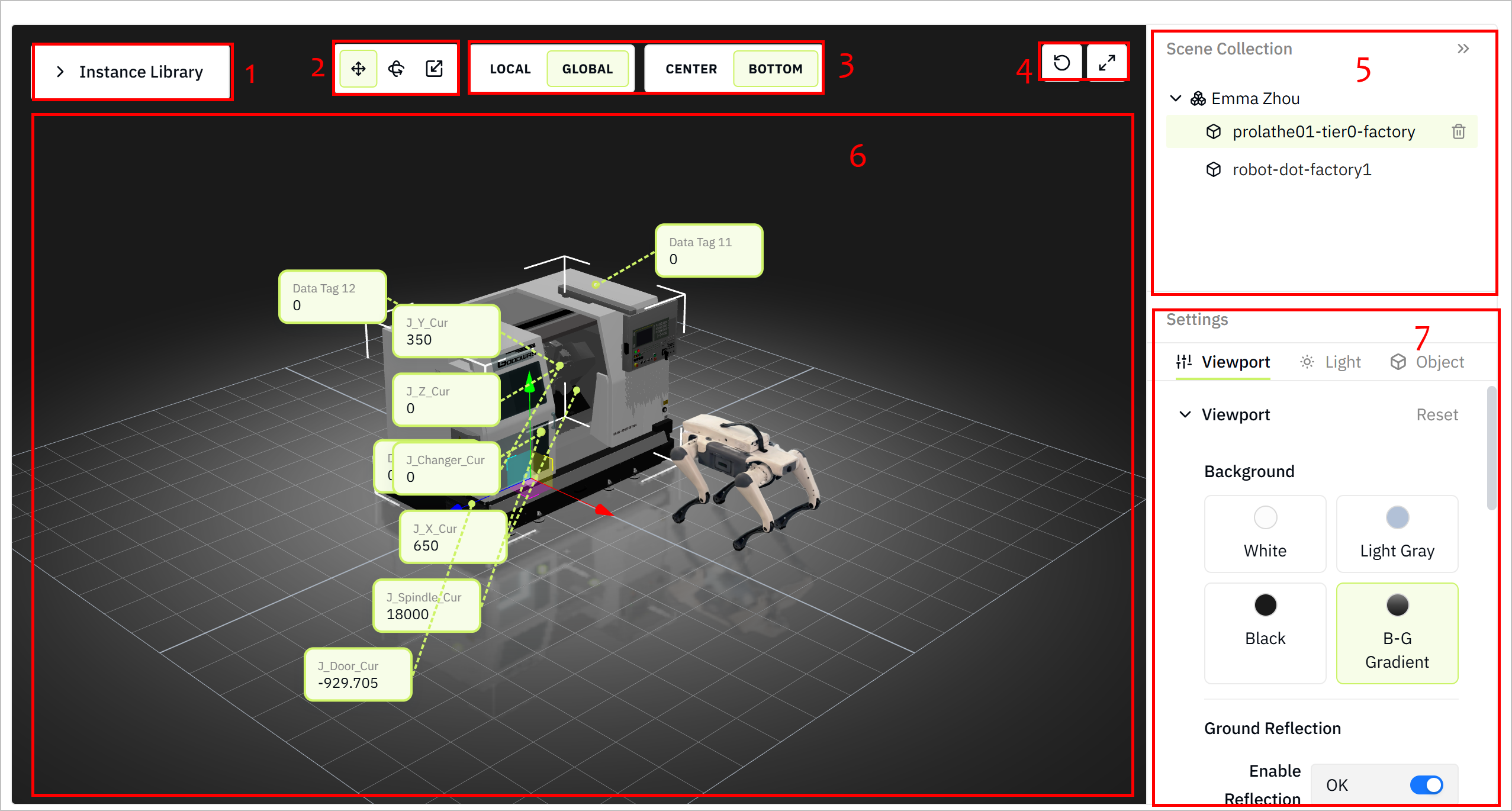

• Scene Description.



  No.	Module	Item	Description
  1	Instance Library		Lists all configured models from Model Library.
  2	Model Position	//	Moves/rotates/scales the model along the X, Y and Z axes.
  3	Axis	Local/Global	Decides whether the model axis is based on the model itself, or the entire screen.
  		Center/Bottom	Sets the axis position to be at the center or bottom of the model.
  4	General Operations	/	Restores the scene to the original viewport/Views the scene in full screen.
  5	Scene Collection		Displays all added models in the scene.
  6	Canvas		Displays the scene canvas.
  7	Settings	Viewport	Sets the scene viewport, including background, camera parameters and grid layout.
  		Light	Sets the lighting conditions in the scene under different types of presets.
  		Object	Displays the properties of the selected model in the scene. You can edit its position by manually changing the values.

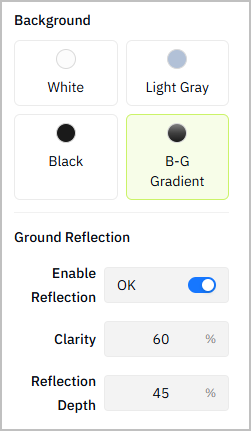

• Viewport



  Parameter	Description
  Background	Background style of the scene canvas.
  Ground Reflection	Controls whether a reflection effect appears beneath the models, simulating a reflective ground surface.
  Enable Reflection	Turns the ground reflection effect on or off.
  Clarity	Adjusts how clear or sharp the reflection looks. Higher values produce a clearer reflection.
  Reflection Depth	Adjusts the vertical range or depth of the reflection. A higher value usually makes the reflection extend farther downward.

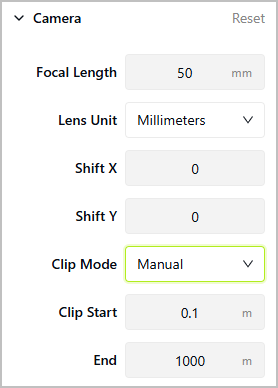

  • Camera



    Parameter	Description
    Focal Length	Sets the camera focal length. A smaller value gives a wider view.
    Lens Unit	Specifies the unit used for the lens setting. In this example, the focal length is measured in millimeters.
    Shift X/Y	Moves the camera view horizontally/vertically without rotating the camera. Positive or negative values shift the framing left or right/up or down.
    Clip Start	Defines the nearest distance from the camera at which objects start to be visible. Objects closer than this distance will be clipped.
    End	Defines the farthest distance from the camera at which objects remain visible. Objects beyond this distance will be clipped.

  • Grid



    Parameter	Description
    Show Grid	Whether the grid is visible in the scene.
    Show Axis	Whether the coordinate axes are displayed in the scene.
    Area Size	Defines the overall visible size of the grid area.
    Min Cell Size	Defines the minimum size of each grid cell.
    Infinite Grid	Whether the grid extends infinitely instead of being limited to a fixed area.

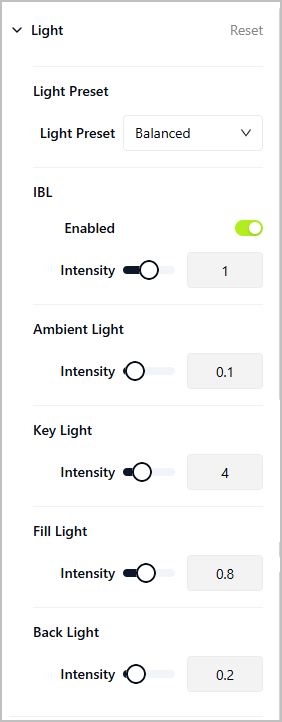

• Light



  Parameter	Description
  Preset	Selects a predefined lighting setup. Available options include Balanced, Soft, and Contrast.
  Ambient	Controls the intensity of ambient light, which provides overall non-directional illumination to the entire scene.
  Key	Controls the intensity of the main light source, which is the primary light shaping the object and creating the main highlights and shadows.
  Fill	Controls the intensity of the fill light, which softens shadows created by the key light and reduces contrast.
  Back	Controls the intensity of the back light, which illuminates the object from behind to help separate it from the background.

How to Build a Digital Twin Scene

1. Log in to Tier0, select Anchor > Scene.

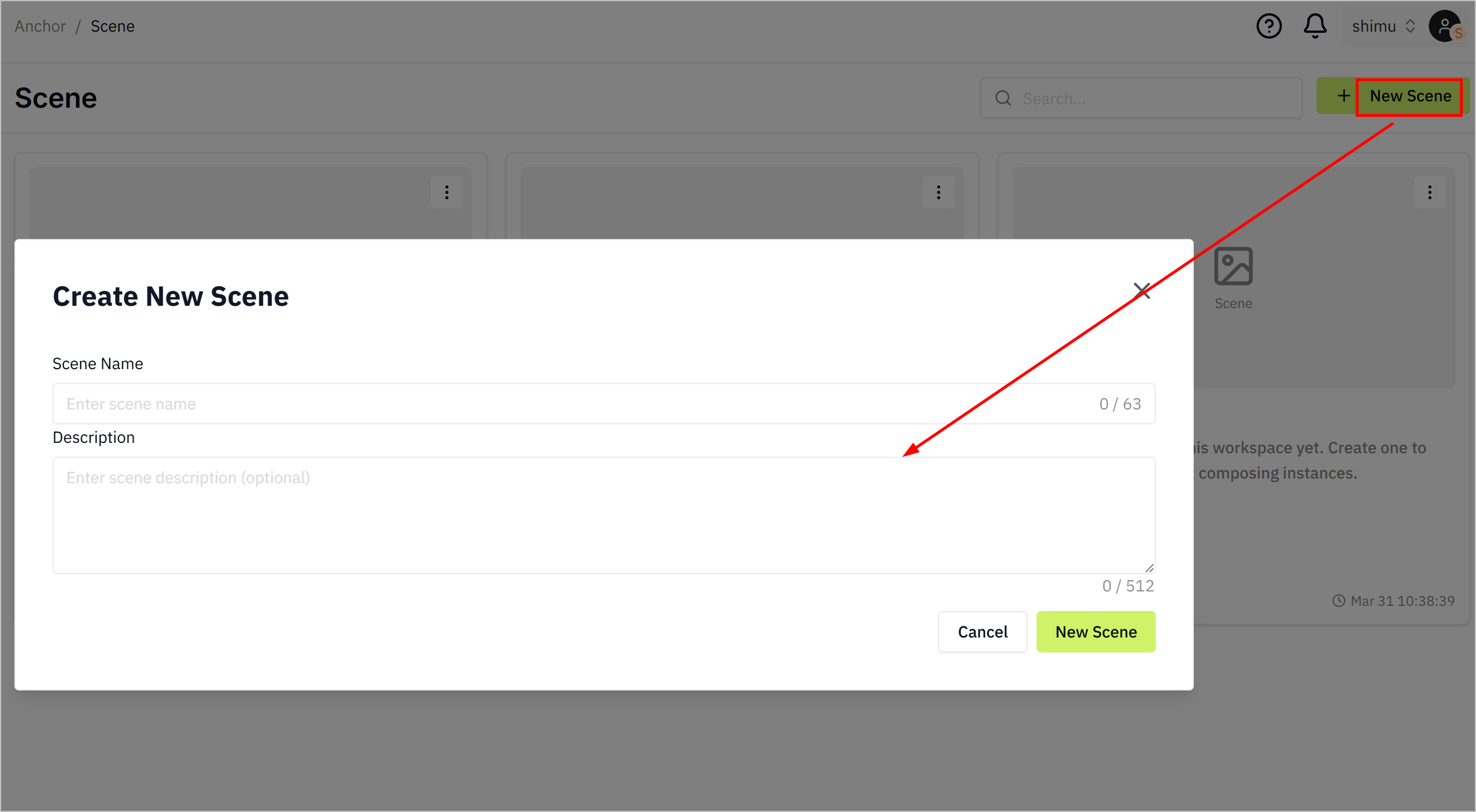

2. Click New Scene at the upper-right corner, enter the scene information, and click OK.

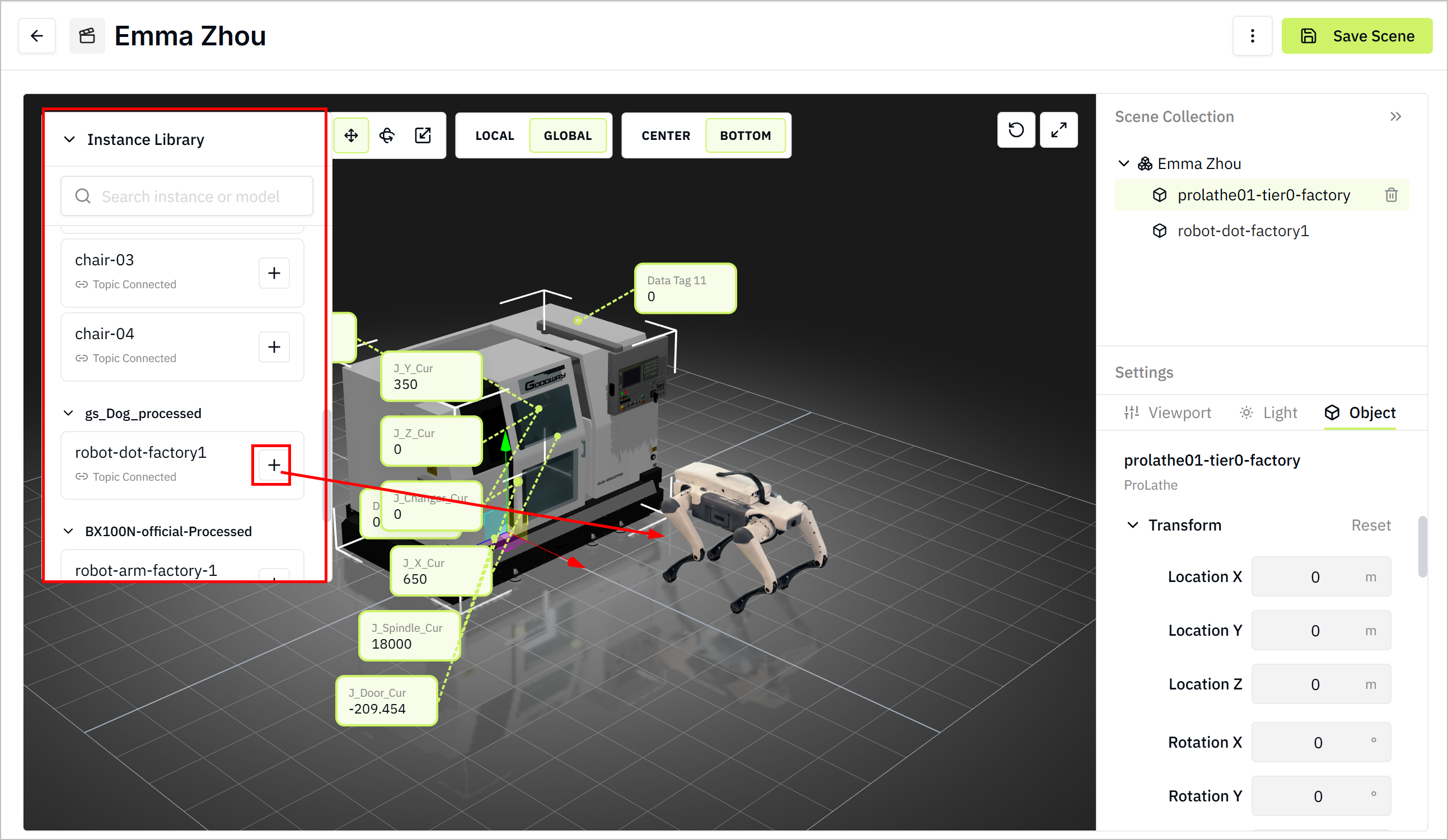

3. Open the created scene, select instances from Instance Library on the left.

4. Configure the models added to the scene.

   1. Set the model axis.
   2. Adjust the model position, rotation and scale based on the selected axis.
   3. On the right side, edit the viewport, camera and grid as needed.
   4. Edit lighting settings.
   5. (optional) Edit the model position by setting the numbers under Object > Transform.

5. Click Save Scene at the upper-right corner.
